9208 - 9660STS and 9760STS Self-Propelled Combines (North American Edition) - 30Aug18
120 - THRESHING AND SEPARATION( ОБМОЛОТ И СЕПАРАЦИЯ)

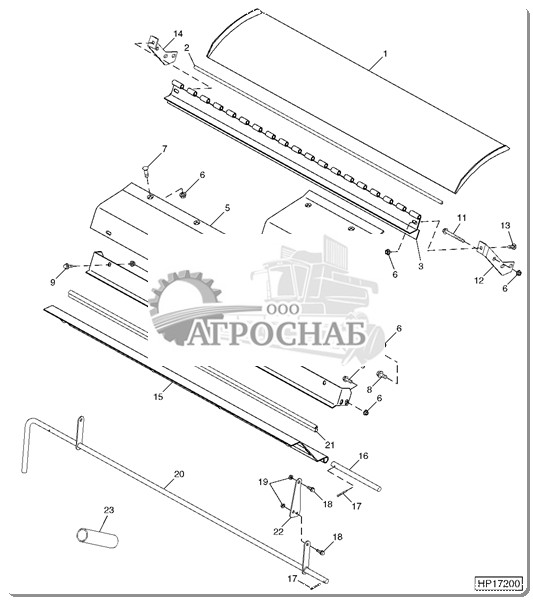

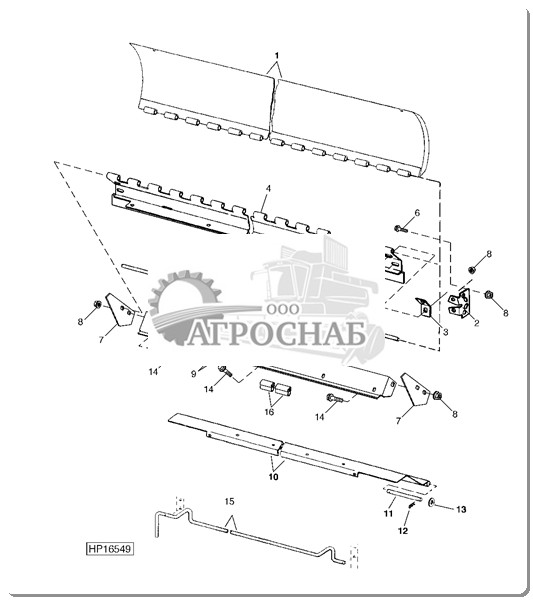

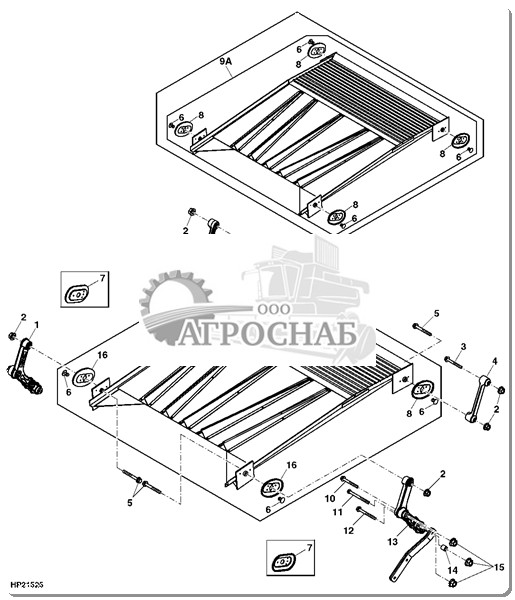

Separator / Feeder House Seal, Stone Trap And Door ( - 720300)(Сепаратор Питателе Уплотнения Каменной Западни И Двери )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | AH156157 | Plate | 1 | X | X | ||
| 2 | H148018 | Support | 2 | X | X | ||
| 3 | H148019 | Reinforcement | 2 | X | X | ||
| 4 | AH161812 | Hinge | 1 | X | X | ||
| 5 | H117953 | Pin Fastener | 1 | X | X | ||
| 6 | 19M7812 | Screw | 6 | X | X | M10 X 100 | |
| 7 | H156673 | Plate | 2 | X | X | ||
| 8 | 14M7296 | Flange Nut | 10 | X | X | M10 | |
| 9 | H219578 | Deflector | 1 | X | X | (SUB FOR H163500) (APPLY SEAL AH80335) | |
| 10 | H134335 | Door | 1 | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 11 | H148925 | Pin | 2 | X | X | ||
| 12 | 11M7030 | Cotter Pin | 4 | X | X | 5 X 40 mm | |
| 13 | 24M7051 | Washer | 2 | X | X | 21 X 37 X 3 mm | |
| 14 | 19M7786 | Screw | 3 | X | X | M10 X 30 | |
| 15 | H134338 | Rod | 1 | X | X | ||
| 16 | ...... | Weatherstrip | 1 | X | X | CTL 1386 mm, MF AH80335 | |
| 17 | 03M7192 | Bolt | 4 | X | X | M10 X 30 |
Separator / Feeder House Seal, Stone Trap And Door (720301 - )(Сепаратор Питателе Уплотнения Каменной Западни И Двери )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | AH156157 | Plate | 1 | X | X | ||
| 2 | ...... | Pin Fastener | 1 | X | X | 1377 MM, (CUT FROM H130057) | |
| 3 | AH227675 | Hinge | 1 | X | X | SUB FOR AH219193 | |
| 4 | H212186 | Floor | 1 | X | X | ||
| 5 | AH154691 | Floor | 1 | X | X | ||
| 6 | 14M7299 | Flange Nut | AR | X | X | M12 | |
| 7 | H160905 | Bolt | 1 | X | X | M12 X 45 | |
| 8 | 19M7789 | Screw | AR | X | X | M12 X 30 | |
| 9 | 19M7786 | Screw | AR | X | X | M10 X 30 | |
| 10 | H219578 | Deflector | 1 | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 11 | 19M7812 | Screw | 2 | M10 X 100 | |||
| 12 | H229033 | Bracket | 1 | (SUB FOR H218983)LH | |||
| 13 | 03M7192 | Bolt | AR | M10 X 30 | |||
| 14 | H229027 | Bracket | 1 | (SUB FOR H219499) RH | |||
| 15 | AH219192 | Door | 1 | ||||
| 16 | H118068 | Pin Fastener | 2 | ||||
| 17 | 11M7030 | Cotter Pin | 2 | 5 X 40 mm | |||
| 18 | H169568 | Screw | 2 | ||||
| 19 | 14M7298 | Flange Nut | AR | M8 | |||
| 20 | AH218119 | Handle | 1 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 21 | ...... | Weatherstrip | 1 | CTL 1377 mm, MF AH80335 | |||
| 22 | H219495 | Linkage | 2 | ||||
| 23 | H154379 | Sealant | 1 |

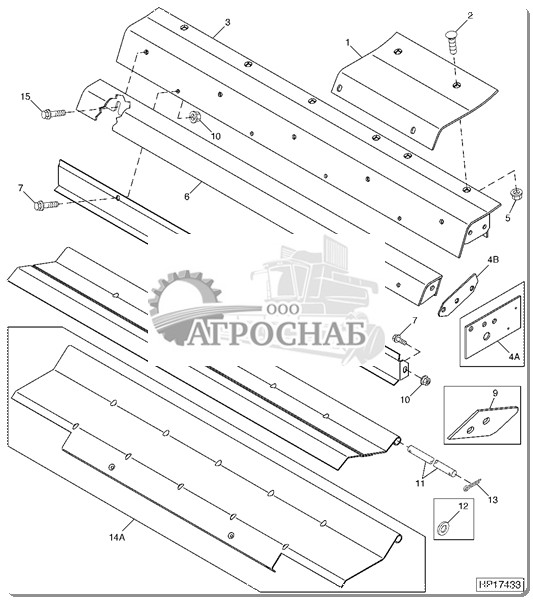

Two-Piece Stone Trap And Door(Двухкомпонентная Каменной Западни И Двери)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | H175501 | Floor | 1 | X | X | (USE WITH AH168780) | |||
| H175812 | Floor | 1 | X | X | |||||
| 2 | H160905 | Bolt | 2 | X | X | ||||
| 3 | AH168779 | Floor | 1 | X | X | ||||
| 4A | H201137 | Template | 2 | - | 720300 | ||||
| H201137 | Template | 2 | - | 720400 | |||||
| 4B | ...... | Template | 2 | 720301 | - | ||||
| ...... | Template | 2 | 720401 | - | |||||
| 5 | 14M7299 | Flange Nut | 2 | X | X | M12 | |||
| 6 | AH168780 | Floor | 1 | X | X | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
| 7 | 19M7786 | Screw | 8 | X | X | M10 X 30 | |||
| 8 | H174908 | Deflector | 1 | - | 720300 | ||||
| H174908 | Deflector | 1 | - | 720400 | |||||
| H219577 | Deflector | 1 | 720301 | - | |||||
| H219577 | Deflector | 1 | 720401 | - | |||||
| 9 | H201449 | Plate | 2 | - | 720300 | ||||
| H201449 | Plate | 2 | - | 720400 | |||||
| 10 | 14M7296 | Flange Nut | 8 | X | X | M10 | |||
| 11 | H148925 | Pin | 2 | X | X | ||||
| 12 | 24M7051 | Washer | 2 | - | 720300 | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
| 24M7051 | Washer | 2 | - | 720400 | |||||
| 13 | 11M7030 | Cotter Pin | 2 | X | X | 5 X 40 mm | |||
| 14A | H201431 | Door | 1 | - | 720300 | ||||
| H201431 | Door | 1 | - | 720400 | |||||
| 14B | AH219192 | Door | 1 | 720301 | - | ||||
| AH219192 | Door | 1 | 720401 | - | |||||
| 15 | 19M7790 | Screw | 5 | X | X | M12 X 35 | |||
| .. | BH84029 | Complete Goods/Ship. Bundle | 1 | - | 720500 | ||||
| .. | BH84496 | Complete Goods/Ship. Bundle | 1 | 720501 | - |

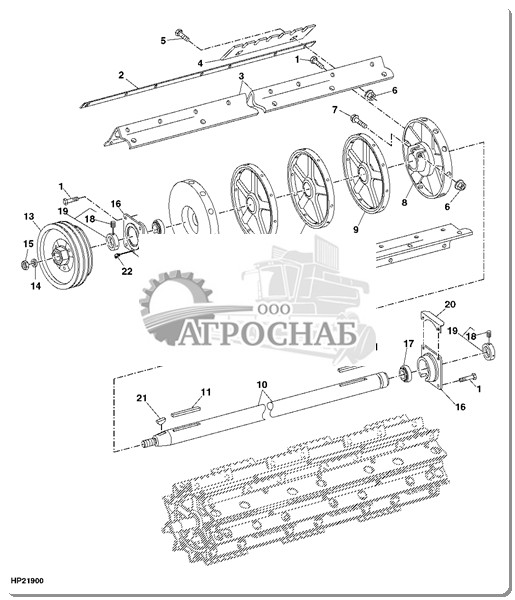

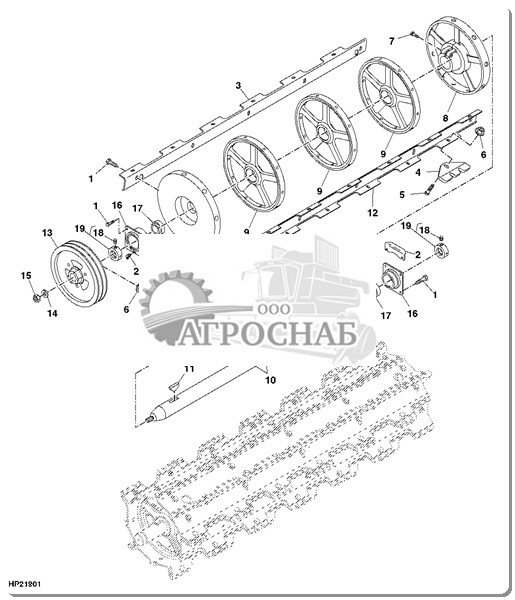

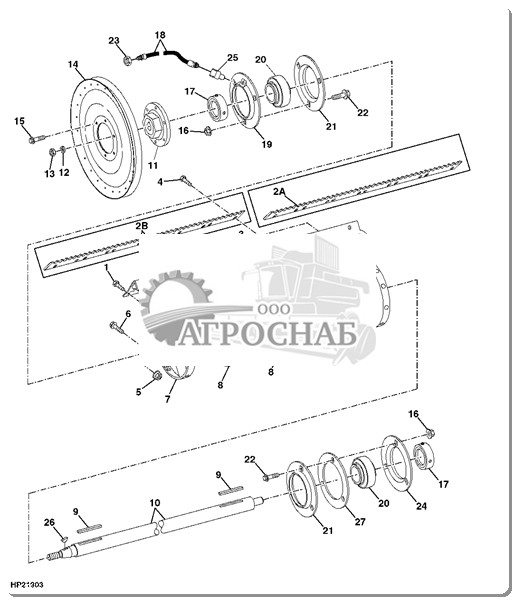

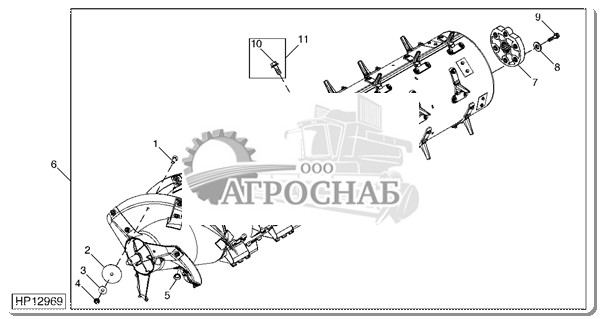

Feed Accelerator Assembly(Сборка Ускорителя Кормить )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | 19M7786 | Screw | 58 | X | X | M10 X 30 | |
| 2 | H165408 | Strip | 10 | X | X | ||
| 3 | H166181 | Support | 5 | X | X | (C) | |
| AH201960 | Support | 5 | X | X | (D) | ||
| 4 | H165407 | Plate | 30 | X | X | (E) | |
| H166689 | Plate | 30 | X | X | (F) | ||
| H201914 | Plate | 30 | X | X | (G) | ||
| 5 | 03M7375 | Bolt | 70 | X | X | M10 X 30 | |
| 6 | 14M7296 | Flange Nut | 72 | X | X | M10 | |
| 7 | 19M7810 | Screw | 2 | X | X | M10 X 80 | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 8 | H163612 | Hub | 2 | X | X | ||
| 9 | HXE19798 | Hub | 3 | X | X | (SUB FOR AH208495) | |
| 10 | H158386 | Shaft | 1 | X | X | ||
| 11 | H64376 | Shaft Key | 2 | X | X | 2 1/4" | |
| 12 | H221379 | Support | 5 | X | X | (H) (SUB FOR H166383) | |
| AH201929 | Support | 5 | X | X | (I) | ||
| 13 | H165008 | Pulley | 1 | X | X | (A) | |
| H238353 | Pulley | 1 | X | X | (J) (SUB FOR H230127) | ||
| H172338 | Pulley | 1 | X | X | (K) | ||
| H204663 | Pulley | 1 | X | X | (L) | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 14 | R30399 | Washer | 1 | X | X | 26 X 57 X 6MM | |
| 15 | 14M7278 | Nut | 1 | X | X | M24 | |
| 16 | H203950 | Housing | 2 | X | X | ||
| 17 | JD9431 | Ball Bearing | 2 | X | X | ||
| 18 | 22H982 | Set Screw | 2 | X | X | 7/16" X 7/16" | |
| 19 | JD9365 | Eccentric Locking Collar | 2 | X | X | ||
| 20 | H158765 | Bracket | 1 | X | X | ||
| 21 | 26H109 | Shaft Key | 1 | X | X | 3/8" X 2-1/8" | |
| 22 | JD7806 | Lubrication Fitting | 1 | X | X | (USE WITH H172338) | |
| JD7788 | Lubrication Fitting | 1 | X | X | (USE WITH H165008 OR H204663) | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| .. | BH81691 | Complete Goods/Ship. Bundle | 1 | X | X | (M) | |
| .. | BH81489 | Complete Goods/Ship. Bundle | 1 | X | X | (N) | |
| .. | BH84027 | Complete Goods/Ship. Bundle | 1 | X | X | (O) |

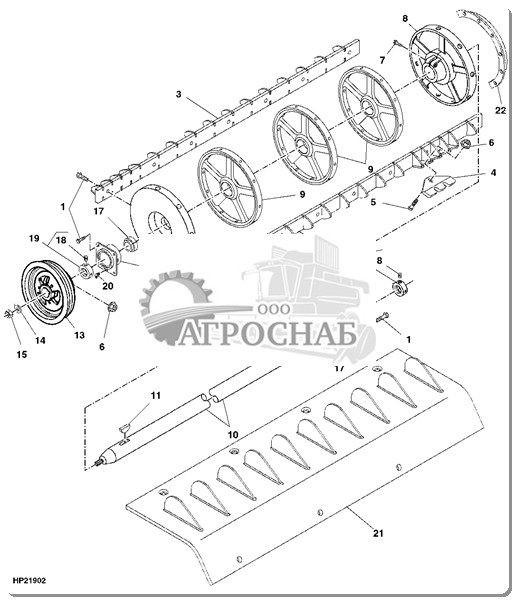

Feed Accelerator Assembly, Rice(Кормить Акселератора Риса)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 19M7786 | Screw | 50 | X | X | M10 X 30 | |||
| 2 | H158765 | Bracket | 1 | X | X | ||||
| 3 | H178646 | Support | 5 | - | 706383 | ||||
| H178646 | Support | 5 | - | 705887 | |||||
| H208404 | Support | 5 | 706384 | - | |||||
| H208404 | Support | 5 | 705888 | - | |||||
| 4 | H174742 | Plate | 60 | - | 706383 | ||||
| H174742 | Plate | 60 | - | 705887 | |||||
| H208429 | Wear Plate | 60 | 706384 | - | |||||
| H208429 | Wear Plate | 60 | 705888 | - | |||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
| 5 | 03M7238 | Bolt | 60 | - | 706383 | ||||
| 03M7238 | Bolt | 60 | - | 705887 | |||||
| 03M7199 | Bolt | 60 | 706384 | - | |||||
| 03M7199 | Bolt | 60 | 705888 | - | |||||
| 6 | 14M7296 | Flange Nut | 62 | - | 706383 | ||||
| 14M7296 | Flange Nut | 62 | - | 705887 | |||||
| 14M7299 | Flange Nut | 60 | 706384 | - | |||||
| 14M7299 | Flange Nut | 60 | 705888 | - | |||||
| 7 | 19M7810 | Screw | 2 | X | X | M10 X 80 | |||
| 8 | H163612 | Hub | 2 | X | X | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
| 9 | HXE19798 | Hub | 3 | X | X | (SUB FOR AH208495) | |||
| 10 | H158386 | Shaft | 1 | X | X | ||||
| 11 | 26H109 | Shaft Key | 1 | X | X | 3/8" X 2-1/8" | |||
| 12 | H178645 | Support | 5 | - | 706383 | ||||
| H178645 | Support | 5 | - | 705887 | |||||
| H208403 | Support | 5 | 706384 | - | |||||
| H208403 | Support | 5 | 705888 | - | |||||
| 13 | H204663 | Pulley | 1 | X | X | 2 Rib | |||
| 14 | R30399 | Washer | 1 | X | X | 26 X 57 X 6MM | |||
| 15 | 14M7278 | Nut | 1 | X | X | M24 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
| 16 | H203950 | Housing | 2 | X | X | ||||
| 17 | JD9431 | Ball Bearing | 2 | X | X | ||||
| 18 | 22H982 | Set Screw | 2 | X | X | 7/16" X 7/16" | |||
| 19 | JD9365 | Eccentric Locking Collar | 2 | X | X | ||||
| 20 | JD7788 | Lubrication Fitting | 1 | X | X |
FEED ACCELERATOR ASSEMBLY (SPIKE)(КОРМИТЬ УСКОРИТЕЛЬ СПАЙК СБОРКИ )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 19M7786 | Screw | 50 | X | X | M10 X 30 | |||
| 2 | H158765 | Bracket | 1 | X | X | ||||
| 3 | AH232660 | Bar | 5 | X | X | ||||
| 4 | H174742 | Plate | 60 | - | 706383 | ||||
| H174742 | Plate | 60 | - | 705887 | |||||
| H208429 | Wear Plate | 60 | 706384 | - | |||||
| H208429 | Wear Plate | 60 | 705888 | - | |||||
| 5 | 03M7238 | Bolt | 60 | - | 706383 | ||||
| 03M7238 | Bolt | 60 | - | 705887 | |||||
| 03M7199 | Bolt | 60 | 706384 | - | |||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
| 03M7199 | Bolt | 60 | 705888 | - | |||||
| 6 | 14M7296 | Flange Nut | 62 | - | 706383 | ||||
| 14M7296 | Flange Nut | 62 | - | 705887 | |||||
| 14M7299 | Flange Nut | 60 | 706384 | - | |||||
| 14M7299 | Flange Nut | 60 | 705888 | - | |||||
| 7 | 19M7810 | Screw | 2 | X | X | M10 X 80 | |||
| 8 | H163612 | Hub | 2 | X | X | ||||
| 9 | HXE19798 | Hub | 3 | X | X | (SUB FOR AH208495) | |||
| 10 | H158386 | Shaft | 1 | X | X | ||||
| 11 | 26H109 | Shaft Key | 1 | X | X | 3/8" X 2-1/8" | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
| 12 | AH232661 | Bar | 5 | X | X | ||||
| 13 | H204663 | Pulley | 1 | X | X | ||||
| 14 | R30399 | Washer | 1 | X | X | 26 X 57 X 6MM | |||
| 15 | 14M7278 | Nut | 1 | X | X | M24 | |||
| 16 | H203950 | Housing | 2 | X | X | ||||
| 17 | JD9431 | Ball Bearing | 2 | X | X | ||||
| 18 | 22H982 | Set Screw | 2 | X | X | 7/16" X 7/16" | |||
| 19 | JD9365 | Eccentric Locking Collar | 2 | X | X | ||||
| 20 | JD7788 | Lubrication Fitting | 1 | X | X | ||||
| 21 | AH232790 | Floor | 1 | X | X | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
| 22 | AH233931 | Guard | 4 | X | X |

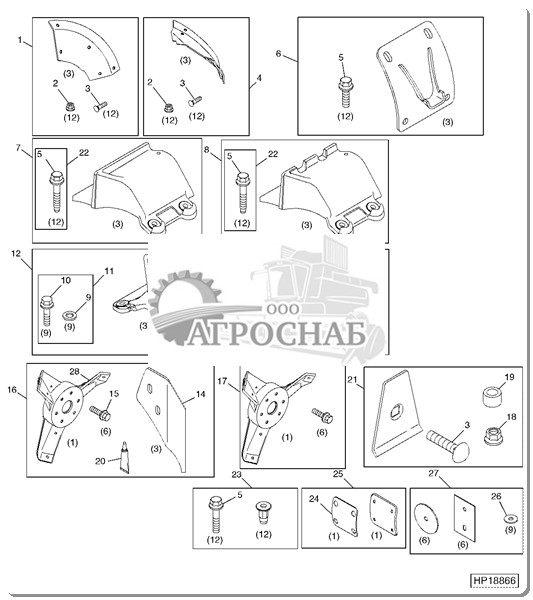

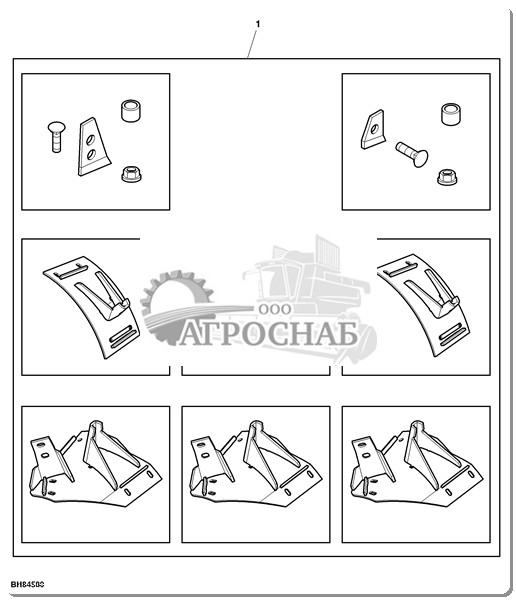

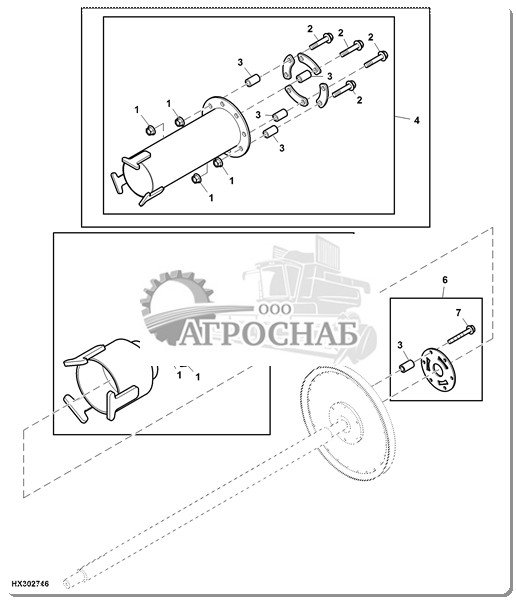

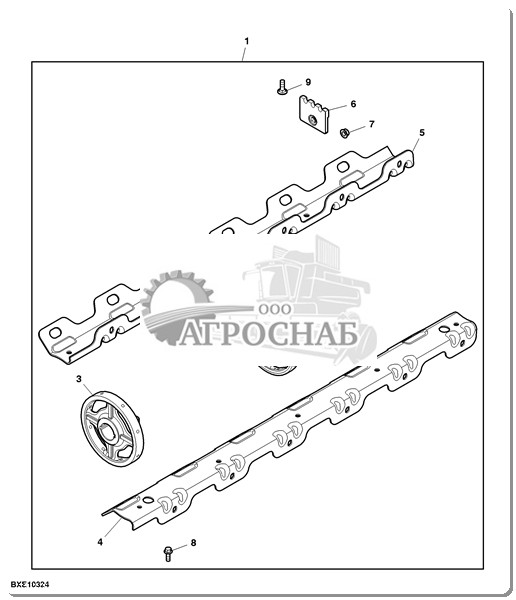

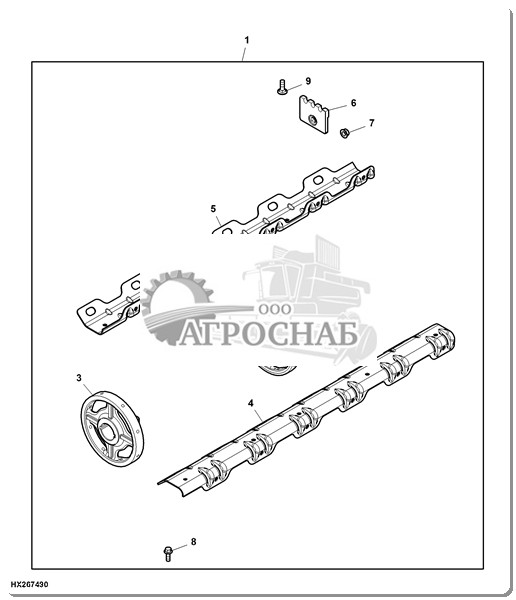

Feed Accelerator and Rear Discharge Beater Wings Kit(Кормить акселератор и задний выброс Колотушки Крылья комплект)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | KXE10347 | Separator Kit | 1 | SUB FOR BXE10324, KXE10205 AND KXE10253 | ||
| 2 | HXE29456 | Hub | 3 | |||
| 3 | HXE38786 | Hub | 2 | |||
| 4 | HXE84113 | Support | 4 | RH | ||
| 5 | HXE84114 | Support | 4 | LH | ||
| 6 | HXE45530 | Wear Plate | 48 | |||
| 7 | H137329 | Lock Nut | 48 | M12 | ||
| 8 | 19M7786 | Screw | 40 | M10 X 30 | ||
| 9 | L215374 | Bolt | 48 | M12 X 35 |

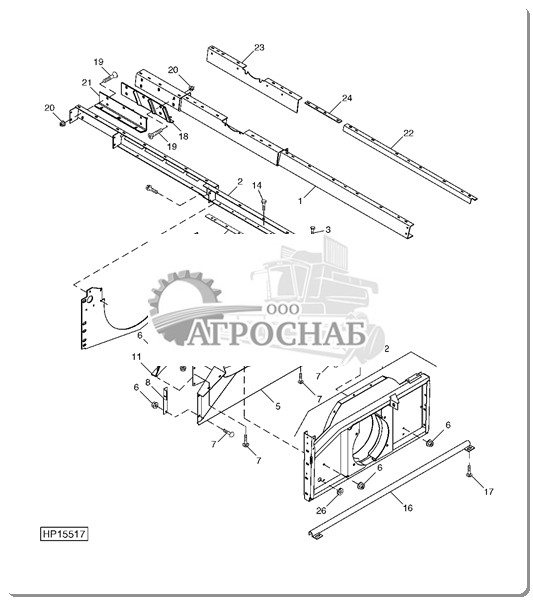

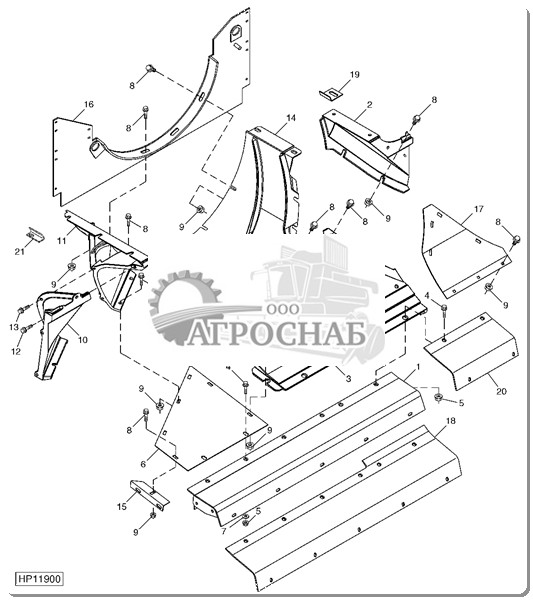

Feed Housing Assembly(Подача Корпуса В Сборе)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | AH154691 | Floor | 1 | X | X | ||
| 2 | H203556 | Housing | 1 | X | X | ||
| 3 | H203558 | Housing | 1 | X | X | ||
| 4 | H160905 | Bolt | AR | X | X | ||
| 5 | 14M7299 | Flange Nut | AR | X | X | M12 | |
| 6 | H203561 | Floor | 1 | X | X | ||
| 7 | 24M7047 | Washer | 2 | X | X | 13 X 24 X 2.500 mm | |
| 8 | H174755 | Bolt | AR | X | X | ||
| 9 | 14M7296 | Flange Nut | AR | X | X | M10 | |
| 10 | H203560 | Housing | 1 | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 11 | H203559 | Housing | 1 | X | X | ||
| 12 | 19M7804 | Screw | 1 | X | X | M10 X 40 | |
| 13 | 19M7785 | Screw | 2 | X | X | M10 X 25 | |
| 14 | H203557 | Housing | 1 | X | X | ||
| 15 | H161398 | Angle | 1 | X | X | ||
| 16 | AH234823 | Plate | 1 | X | X | (SUB FOR AH211248) | |
| 17 | H203562 | Floor | 1 | X | X | ||
| 18 | H174680 | Floor | 1 | X | X | ||
| 19 | H165066 | Angle | 1 | X | X | ||
| 20 | H212186 | Floor | 1 | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 21 | H204432 | Plate | 1 | X | X |
Fast Tine Feed Accelerator Assembly(Быстрый Тинье Акселератора Кормить )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | 14M7296 | Flange Nut | AR | X | X | M10 | |
| 2 | H174755 | Bolt | AR | X | X | M10 X 30 | |
| 3 | AH216018 | Tine | 1 | X | X | (A) PQ = 10 | |
| 4 | AH214671 | Cover | 5 | X | X | ||
| 5 | AH202286 | Floor | 1 | X | X | ||
| 6 | 19M7786 | Screw | AR | X | X | M10 X 30 | |
| 7 | H160905 | Bolt | 6 | X | X | M12 X 45 | |
| 8 | 24M7047 | Washer | 2 | X | X | 13 X 24 X 2.500 mm | |
| 9 | 14M7299 | Flange Nut | 6 | X | X | M12 | |
| .. | BH84416 | Complete Goods/Ship. Bundle | 1 | X | X |

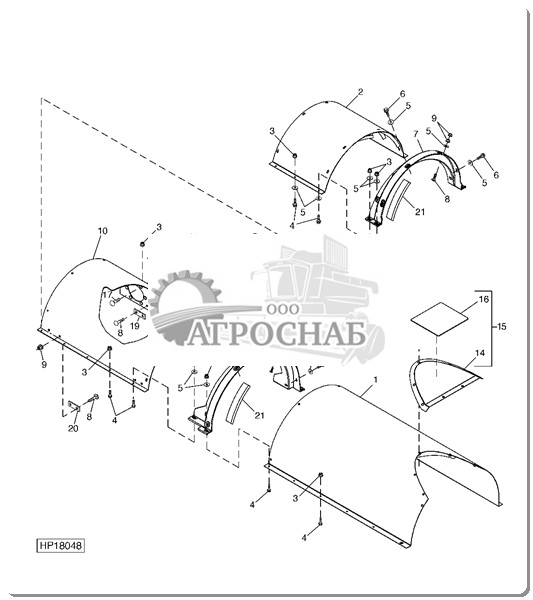

Separator Top Covers(Верхний Сепаратор Крышки)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | AH171322 | Cover | 1 | X | X | ||
| AH202723 | Cover | 1 | X | X | (D) | ||
| 2 | AH208966 | Cover | 1 | X | X | ||
| AH208967 | Cover | 1 | X | X | (D) | ||
| 3 | H135891 | Lock Nut | AR | X | X | ||
| 4 | 19M7786 | Screw | 8 | X | X | M10 X 30 | |
| 19M7807 | Screw | 8 | X | X | (E) M10 X 60 | ||
| 19M7835 | Screw | 24 | X | X | M10 X 35 | ||
| 5 | 24M7296 | Washer | AR | X | X | 10.500 X 30 X 2.500 mm | |
| 6 | 19M7784 | Screw | 10 | X | X | M10 X 20 | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 7 | H206370 | Flange | 1 | X | X | APPLY SEAL H81330 | |
| 8 | H174755 | Bolt | AR | X | X | (A) | |
| 9 | 14M7296 | Flange Nut | AR | X | X | M10 (A) | |
| 10 | AH207683 | Cover | 1 | X | X | (B) (INCL A) | |
| AH208573 | Cover | 1 | X | X | (C) | ||
| AH207684 | Cover | 1 | X | X | (B) (D) | ||
| AH208575 | Cover | 1 | X | X | (C) | ||
| 11 | H164786 | Door | 1 | X | X | ||
| AH201994 | Door | 1 | X | X | (D) | ||
| 12 | H206369 | Flange | 1 | X | X | APPLY SEAL H81330) | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 13 | H206922 | Flange | 1 | X | X | ||
| 14 | H161447 | Door | 1 | X | X | ||
| 15 | AH171941 | Door | 1 | X | X | ||
| 16 | H136015 | Mat | 1 | X | X | ||
| 17 | H174755 | Bolt | 6 | X | X | (A) | |
| 18 | H141123 | Push Nut | 6 | X | X | (A) | |
| 19 | H207530 | Strip | 1 | X | X | (A) | |
| 20 | H209138 | Strap | 1 | X | X | (A) | |
| 21 | ...... | Isolator | 2 | X | X | CTL 1200 mm, MF H81330 |
Dust Covers(Пылезащитные Крышки)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | AH168571 | Plate | 1 | X | X | ||
| 2 | AH209782 | Support | 2 | X | X | ||
| 3 | AH221600 | Support | 1 | X | X | (SUB FOR AH154880) | |
| 4 | AH221601 | Support | 1 | X | X | SUB FOR AH154881 | |
| 5 | AH154878 | Plate | 1 | X | X | ||
| 6 | H174181 | Cover | 1 | X | X | APPLY SEAL H88773 | |
| 7 | 14M7298 | Flange Nut | 4 | X | X | M8 | |
| 8 | 19M7866 | Screw | 2 | X | X | M8 X 20 | |
| 9 | 19M7913 | Screw | 2 | X | X | M8 X 90 | |
| 10 | 03M7192 | Bolt | 5 | X | X | M10 X 30 | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 11 | 19M7784 | Screw | 8 | X | X | M10 X 20 | |
| 12 | 14M7296 | Flange Nut | 5 | X | X | M10 | |
| 13 | 24M7178 | Washer | 5 | X | X | 10.500 X 30 X 2.500 mm | |
| 14 | ...... | Isolator | 1 | X | X | CTL 1700 mm, MF H88769 |

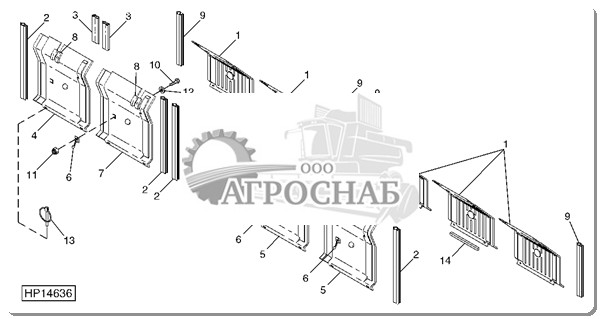

Separator Doors and Seals(Сепаратор дверей и уплотнения)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | H155049 | Door | 5 | X | X | RH | |
| 2 | H226877 | Isolator | 4 | X | X | (SUB FOR H155040) | |
| 3 | H155047 | Isolator | 4 | X | X | ||
| 4 | H155048 | Door | 1 | X | X | (A) | |
| 5 | H155048 | Door | 3 | X | X | LH | |
| 6 | AH161580 | Dual Lock Fastener | 3 | X | X | ||
| 7 | H155048 | Door | 1 | X | X | (A) | |
| 8 | H158766 | Isolator | 2 | X | X | ||
| 9 | H226877 | Isolator | 4 | X | X | (SUB FOR H155040) | |
| 10 | 21M7265 | Screw | 3 | X | X | M5 X 12 | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 11 | 14M7265 | Lock Nut | 3 | X | X | M5 | |
| 12 | 24M7210 | Washer | 3 | X | X | 5.500 X 18 X 2 mm | |
| 13 | M72598 | Quick Lock Pin | 14 | X | X | ||
| 14 | H213154 | Isolator | AR | X | X |

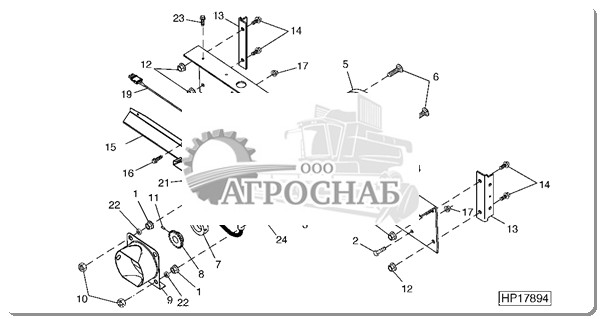

Rotor Bearing And Channel(Подшипник Ротора И Канал)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | 14M7291 | Flange Nut | 4 | X | X | M16 | |
| 2 | 19M7786 | Screw | 2 | X | X | M10 X 30 | |
| 3 | AH231759 | Bearing With Housing | 1 | X | X | (SUB FOR AH160613) | |
| 4 | H217348 | Angle | 1 | X | X | (SUB FOR H157874) | |
| 5 | H174995 | Ring | 1 | X | X | ||
| 6 | 03M7209 | Bolt | 4 | X | X | M16 X 60 | |
| 7 | AH158887 | Eccentric Locking Collar | 1 | X | X | ||
| 8 | H122372 | Tone Wheel | 1 | X | X | ||
| 9 | H162993 | Bracket | 1 | X | X | ||
| 10 | 14M7260 | Nut | 4 | X | X | M16 | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 11 | 22M7027 | Set Screw | 1 | X | X | M6 X 16 | |
| 12 | 14M7299 | Flange Nut | 4 | X | X | M12 | |
| 13 | H152599 | Angle | 2 | X | X | ||
| 14 | 19M7789 | Screw | 4 | X | X | M12 X 30 | |
| 15 | AH201116 | Bumper | 1 | X | X | ||
| 16 | 37M7083 | Screw | 2 | X | X | M8 X 12 | |
| 17 | 14M7296 | Flange Nut | 2 | X | X | M10 | |
| 18 | AH116104 | Sensor | 1 | X | X | (A) | |
| 19 | AH211645 | Wiring Harness | 1 | X | X | (SUB FOR AH201174) | |
| 20 | AH154498 | Hose | 1 | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 21 | E12379 | Nut | 1 | X | X | ||
| 22 | 24M7097 | Washer | 4 | X | X | 17 X 28 X 2.500 mm | |
| 23 | 37M7084 | Screw | 4 | X | X | M8 X 25 | |
| 24 | N147291 | Bushing | 4 | (C) |

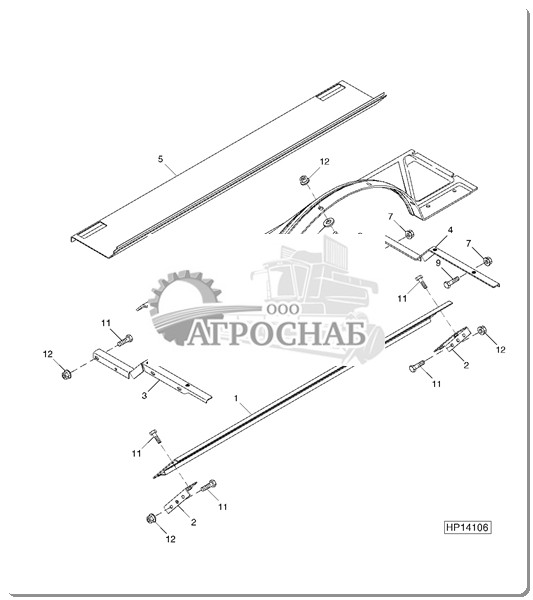

Separator Module Rails and Discharge Housing(Модуль отделителя рельсов и разрядки жилья)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | AH205325 | Rail | 1 | X | X | RH | |||
| AH205326 | Rail | 1 | X | X | (A) | ||||
| 2 | AXE17714 | Rail | 1 | X | X | (SUB FOR AH146604) LH | |||
| 3 | 19M7786 | Screw | AR | X | X | M10 X 30 | |||
| 4 | H135891 | Lock Nut | AR | X | X | ||||
| 5 | AH220706 | Housing | 1 | X | X | (SUB FOR AH204500 OR AH212977) (WHEN R EPLACING AH204500, ALSO ORDER H204753, H204754, (2) H204771, H221218, H221219 AND H221210.) (WHEN ORDERING AH212977, ALSO ORDER H221218, H221219 AND H221210 .) | |||
| 6 | 14M7296 | Flange Nut | AR | X | X | M10 | |||
| 7 | 03M7375 | Bolt | AR | X | X | M10 X 30 | |||
| 8 | H213257 | Bracket | 1 | X | X | (SUB FOR H204778) | |||
| 9 | H213258 | Bracket | 1 | X | X | (SUB FOR H204779) | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
| 10 | H236784 | Angle | 1 | X | X | (SUB FOR H204753) RH | |||
| 11 | H236785 | Angle | 1 | X | X | (SUB FOR H204754) LH | |||
| 12 | AH171744 | Support | 1 | - | 706172 | ||||
| AH171744 | Support | 1 | - | 705850 | |||||
| AH213279 | Support | 1 | 706173 | - | |||||
| AH213279 | Support | 1 | 705851 | - | |||||
| 13 | H204716 | Plate | 1 | X | X | ||||
| 14 | 19M7590 | Cap Screw | 4 | X | X | M12 X 100 | |||
| 15 | H204771 | Plate | 2 | X | X | ||||
| 16 | H216418 | Shield | 1 | X | X | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
| 17 | 37M7078 | Screw | 2 | X | X | M10 X 16 | |||
| 18 | H219031 | Plate | 1 | X | X | RH, (SUB FOR H203578) | |||
| 19 | H160905 | Bolt | 10 | X | X | ||||
| 20 | 14M7299 | Flange Nut | 10 | X | X | M12 | |||
| 21 | H203577 | Plate | 1 | X | X | LH | |||
| 22 | H175019 | Plate | 1 | X | X | (A) (SUB H214476) | |||
| 23 | H205758 | Plate | 1 | X | X | (A) | |||
| 24 | H205757 | Plate | 1 | X | X | (A) | |||
| 25 | H219130 | Plate | 2 | X | X | ||||
| 26 | H94433 | Grommet | 1 | X | X |

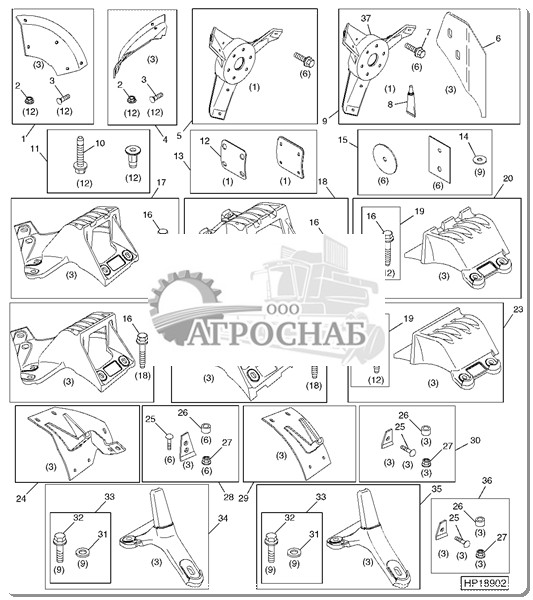

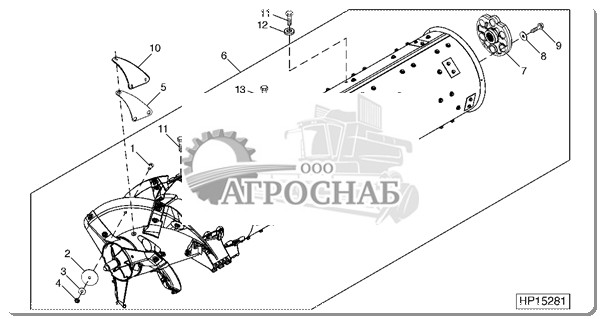

Separator Cone Repair Kits(Сепаратор Комплекты Для Ремонта Конусных )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | AH204533 | Fitting Kit | 1 | X | X | (A) (MARKED H160390) | |||
| 2 | H171638 | Flange Nut | 12 | X | X | M12 | |||
| 3 | H160905 | Bolt | 12 | X | X | ||||
| 4 | AH204534 | Fitting Kit | 1 | X | X | (B) (MARKED H204632) | |||
| 5 | H208187 | Screw | 12 | X | X | M10 X 61 | |||
| 6 | AH216016 | Tine | 12 | X | X | (P) (L) | |||
| 7 | AH167739 | Threshing Element | 1 | X | X | (G) (J) (Q) (M) | |||
| AH209118 | Threshing Element | 1 | - | 712197 | |||||
| AH209118 | Threshing Element | 1 | - | 712197 | |||||
| AH216678 | Fitting Kit | 1 | 712198 | - | |||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
| AH216678 | Fitting Kit | 1 | 712198 | - | |||||
| 8 | AH170608 | Threshing Element | 1 | X | X | (G) (J) (K) (Q) (R) | |||
| AH209119 | Threshing Element | 1 | X | X | (G) (J) (K) (O) (R) (SU B AH216573) (MARKED H209020) | ||||
| 9 | 24M7296 | Washer | 9 | X | X | 10.500 X 30 X 2.500 mm | |||
| 10 | H208187 | Screw | 9 | X | X | M10 X 61 | |||
| 11 | AH167742 | Package Of Parts | AR | X | X | ||||
| 12 | AH208554 | Threshing Element | 1 | X | X | (H) (J) (L) (MARKED H205206) | |||
| AH209123 | Tine | 1 | X | X | (H) (J) (L) (O) (MARKED H205220) | ||||
| 13 | AH228817 | Kit | 1 | X | X | (H) (S) (SUB FOR AH2 21387) (MARKED H230288) | |||
| 14 | H204904 | Bracket | 1 | X | X | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
| 15 | 19M7783 | Screw | 6 | X | X | M10 X 16 | |||
| 16 | AH229287 | Deflector | 3 | X | X | (I) (SUB FOR AH204624) (SUB H224862 AND H204904) | |||
| 17 | AH229285 | Repair Kit | 1 | X | X | (C) (SUB FOR AH161700) | |||
| 18 | H171638 | Flange Nut | 6 | X | X | M12 | |||
| 19 | 28H2490 | Bushing | 6 | X | X | 0.546" X 0.840" X 9/16" | |||
| 20 | PM37421 | Sealant | 1 | X | X | ||||
| 21 | AH222540 | Wear Plate | 1 | X | X | (T) (L) | |||
| 22 | AH171088 | Package Of Parts | 2 | X | X | ||||
| 23 | AH167741 | Cap Screw And Nut | 1 | X | X | (D) | |||
| 24 | H173621 | Gasket | 1 | X | X | ||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
| 25 | AH161703 | Cover | 12 | X | X | (E) | |||
| 26 | 24M7180 | Washer | 9 | X | X | 13 X 37 X 3 mm (M) | |||
| 27 | AH161704 | Weight Kit | 1 | X | X | (F) | |||
| 28 | H224862 | Spider | 1 | X | X | ||||
| .. | AH171088 | Package Of Parts | 1 | X | X | (U) (INCL M) |

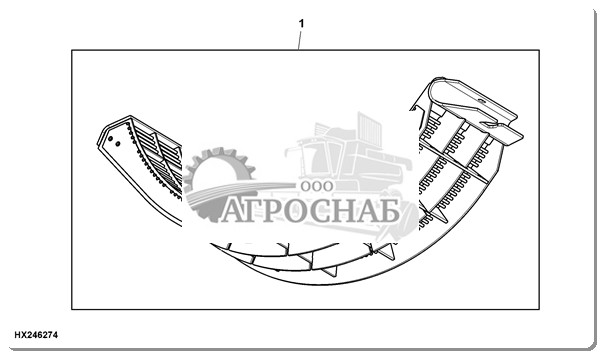

Threshing Tines, Attachment(Молотильные Зубья Крепления)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | BH84580 | Tine | 1 |

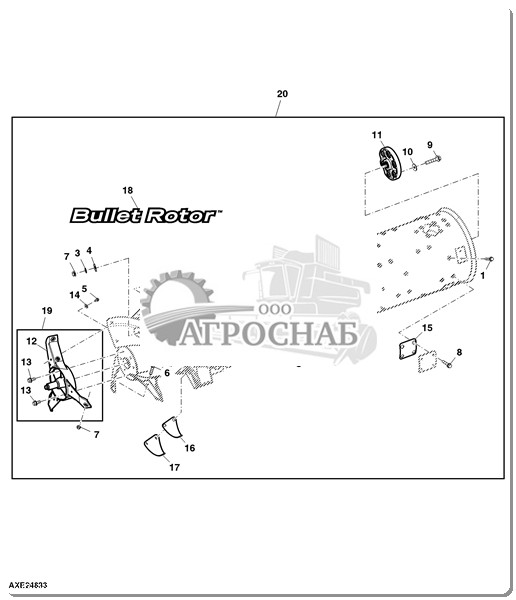

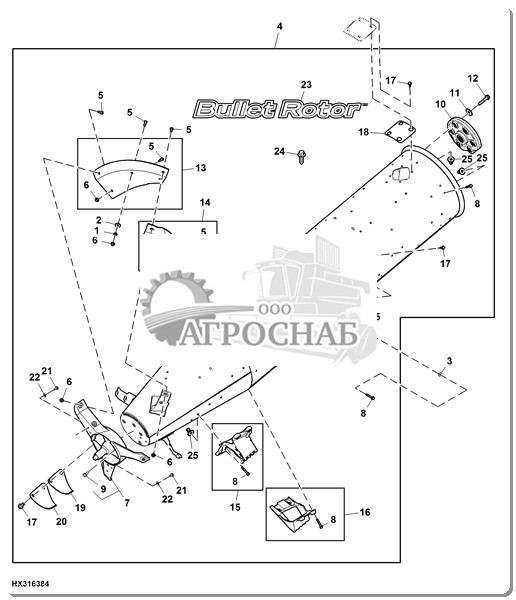

SEPARATOR CONE REPAIR KITS (BULLET ROTOR)(СЕПАРАТОР РЕМОНТ КОНУСА НАБОРЫ ПУЛИ РОТОРА)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | AH216568 | Repair Kit | 1 | X | X | (A) (MARKED H217239) | |
| 2 | H171638 | Flange Nut | 12 | X | X | M12 | |
| 3 | H160905 | Bolt | 12 | X | X | ||
| 4 | AH216569 | Repair Kit | 1 | X | X | (MARKED H217240) | |
| 5 | AH229285 | Repair Kit | 1 | X | X | (C) (SUB FOR AH161700) | |
| 6 | H204904 | Bracket | 3 | X | X | ||
| 7 | 19M7783 | Screw | 6 | X | X | M10 X 16 | |
| 8 | PM37421 | Sealant | 1 | X | X | ||
| 9 | AH229287 | Deflector | 1 | X | X | (I) (SUB FOR AH204624) (SUB H224862 AND H204904) | |
| 10 | H208187 | Screw | 12 | X | X | M10 X 61 | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 11 | AH167741 | Cap Screw And Nut | 1 | X | X | (D) | |
| 12 | H173621 | Gasket | 1 | X | X | ||
| 13 | AH161703 | Cover | 1 | X | X | ||
| 14 | 24M7180 | Washer | 9 | X | X | 13 X 37 X 3 mm | |
| 15 | AH161704 | Weight Kit | 8 | X | X | (E) | |
| 16 | H208187 | Screw | AR | X | X | M10 X 61 | |
| 17 | AH216570 | Threshing Element | 1 | X | X | (G) (J) (M) (P) (MARKED H212565) | |
| 18 | AH216571 | Threshing Element | 1 | X | X | (G) (J) (M) (P) (MARKED H212566) | |
| 19 | AH171088 | Package Of Parts | 1 | X | X | (P) | |
| 20 | AH216572 | Repair Kit | 6 | X | X | (G) (J) (P) (MARKED H206001) | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| AH216573 | Fitting Kit | 6 | X | X | (G) (M) (J) (P) (MARKED H215533) | ||
| 21 | AH216674 | Fitting Kit | 1 | X | X | (G) (J) (M) (Q) (MARKED H212563) | |
| 22 | AH216675 | Fitting Kit | 1 | X | X | (G) (J) (M) (Q) (MARKED H212564) | |
| 23 | AH216677 | Fitting Kit | 1 | X | X | (G) (J) (Q) (MARKED H205999) | |
| AH216678 | Fitting Kit | 1 | X | X | (G) (M) (Q) (MARKED H215532) | ||
| 24 | AH215975 | Kit | 1 | X | X | (K) | |
| 25 | H222307 | Bolt | 6 | X | X | (Q) | |
| 26 | 28H2490 | Bushing | 6 | X | X | (Q) 0.546" X 0.840" X 9/16" | |
| 27 | H171638 | Flange Nut | 6 | X | X | M12 | |
| 28 | AH222538 | Wear Plate | 1 | X | X | (L) (K) (R) (MARKED H222308) | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 29 | AH216014 | Kit | 1 | X | X | (K) | |
| 30 | AH222539 | Wear Plate | 1 | X | X | (L) (K) (S) (MARKED H222309) | |
| 31 | 24M7296 | Washer | 9 | X | X | 10.500 X 30 X 2.500 mm | |
| 32 | H208187 | Screw | 9 | X | X | M10 X 61 | |
| 33 | AH167742 | Package Of Parts | 16 | X | X | ||
| 34 | AH208554 | Threshing Element | 8 | X | X | (H) (R) (J) (MARKED H205206) | |
| AH209123 | Tine | 8 | X | X | (H) (L) (M) (P) (MARKED H205220) | ||
| 35 | AH228817 | Kit | 8 | X | X | (H) (J) (M) (P) (T) (SUB FOR AH221387) (MARKED H230288) | |
| 36 | AH222540 | Wear Plate | 1 | X | X | (L) (N) (U) | |
| 37 | H224862 | Spider | 1 | X | X |
Separator Cone Assembly(Разделитель Ассамблеи Конус )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | H160905 | Bolt | 24 | X | X | ||
| 2 | ...... | Weight | 12 | X | X | (B) | |
| 3 | 24M7180 | Washer | 6 | X | X | 13 X 37 X 3 mm | |
| 4 | H171638 | Flange Nut | 24 | X | X | ||
| 5 | E80202 | Round Retainer | 6 | X | X | ||
| 6 | AH208557 | Separator | 1 | X | X | (A) (C) (SUB AH213217) | |
| AH209125 | Separator | 1 | X | X | (A) (D) (SUB AH213217) | ||
| AH208560 | Separator | 1 | X | X | (A) (C) (E) (SUB AH213213) | ||
| AH209127 | Separator | 1 | X | X | (A) (D) (E) (SUB AH213213) | ||
| 7 | AH150405 | Splined Coupling | 1 | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 8 | 24M7103 | Washer | 6 | X | X | 17.500 X 56 X 5 mm | |
| 9 | 19M7827 | Screw | 6 | X | X | M16 X 80 | |
| 10 | H173619 | Screw | 72 | X | X | ||
| 11 | AH167944 | Package Of Parts | 1 | X | X |
SEPARATOR CONE ASSEMBLY - (BULLET ROTOR)(ПУЛЯ СЕПАРАТОР АГРЕГАТ КОНУСА РОТОРА)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | H160905 | Bolt | 24 | X | X | ||
| 2 | ...... | Weight | AR | X | X | (A) | |
| 3 | 24M7180 | Washer | 6 | X | X | 13 X 37 X 3 mm | |
| 4 | H171638 | Flange Nut | 24 | X | X | ||
| 5 | H208538 | Gasket | 1 | X | X | ||
| 6 | AH237078 | Separator | 1 | X | X | (B) (C) (SUB FOR AH213217) FOR ST ANDARD WEAR ROTOR ORDER (3) AH216677 AN D(8) AH208554, FOR HIGH WEAR ROT OR ORDER (3) AH216678 AND(8) AH20912 3. | |
| AH237080 | Separator | 1 | X | X | (B) (D) (SUB FOR AH213213) ORD ER (6) AH216573 AND(8) AH221387. | ||
| 7 | AH150405 | Splined Coupling | 1 | X | X | ||
| 8 | 24M7103 | Washer | 6 | X | X | 17.500 X 56 X 5 mm | |
| 9 | 19M7827 | Screw | 6 | X | X | M16 X 80 | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 10 | H208537 | Plate | 1 | X | X | ||
| 11 | H208187 | Screw | AR | X | X | ||
| 12 | 24M7296 | Washer | 72 | X | X | 10.500 X 30 X 2.500 mm | |
| 13 | 19M7786 | Screw | 108 | X | X | M10 X 30 |
Rotor Assembly Kit, Thick, Grain(Ротор Комплект Толстые Зерна)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 24M7047 | Washer | AR | 13 X 24 X 2.500 mm | ||
| 2 | 24M7180 | Washer | AR | 13 X 37 X 3 mm | ||
| 3 | 24M7296 | Washer | AR | 10.500 X 30 X 2.500 mm | ||
| 4 | AXE24832 | Separator | 1 | Grain, SUB FOR AXE20078 | ||
| 5 | H160905 | Bolt | AR | |||
| 6 | H171638 | Flange Nut | AR | |||
| 7 | KXE10164 | Repair Kit | 1 | |||
| 8 | H208187 | Screw | AR | |||
| 9 | H159105 | Screw | AR | |||
| 10 | AH150405 | Splined Coupling | 2 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | 24M7103 | Washer | AR | 17.500 X 56 X 5 mm | ||
| 12 | 19M7827 | Screw | AR | M16 X 80 | ||
| 13 | AH216568 | Repair Kit | 1 | |||
| 14 | AH216569 | Repair Kit | 1 | |||
| 15 | AH216674 | Fitting Kit | 1 | |||
| 16 | AH216675 | Fitting Kit | 1 | |||
| 17 | 19M7786 | Screw | AR | M10 X 30 | ||
| 18 | H173621 | Gasket | 1 | |||
| 19 | H208538 | Gasket | 1 | |||
| 20 | H208537 | Plate | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 21 | 19M7783 | Screw | AR | M10 X 16 | ||
| 22 | 24H1886 | Washer | AR | 15/32" X 1-1/8" X 0.180" | ||
| 23 | H217178 | Label | 1 | |||
| 24 | 37M7080 | Screw | 1 | M10 X 30 | ||
| 25 | H173411 | Nut | 193 |
Rotor Assembly Kit, Thick, Rice(Ротор Толщиной Комплект Риса)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 19M7786 | Screw | 156 | M10 X 30 | ||
| 2 | 37M7080 | Screw | 1 | M10 X 30 | ||
| 3 | 24M7047 | Washer | 4 | 13 X 24 X 2.500 mm | ||
| 4 | 24M7180 | Washer | 4 | 13 X 37 X 3 mm | ||
| 5 | 19M7783 | Screw | 6 | M10 X 16 | ||
| 6 | H160905 | Bolt | 22 | |||
| 7 | H171638 | Flange Nut | 22 | |||
| 8 | H208187 | Screw | 38 | |||
| 9 | 19M7827 | Screw | 6 | M16 X 80 | ||
| 10 | 24M7103 | Washer | 6 | 17.500 X 56 X 5 mm | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | AH150405 | Splined Coupling | 1 | |||
| 12 | ...... | Spider | 1 | |||
| 13 | H159105 | Screw | 6 | |||
| 14 | 24H1886 | Washer | 6 | 15/32" X 1-1/8" X 0.180" | ||
| 15 | H173621 | Gasket | 1 | |||
| 16 | H208537 | Plate | 1 | |||
| 17 | H208538 | Gasket | 1 | |||
| 18 | H217178 | Label | 1 | |||
| 19 | KXE10164 | Repair Kit | 1 | |||
| 20 | AXE24833 | Separator | 1 | SUB FOR AXE20080 |

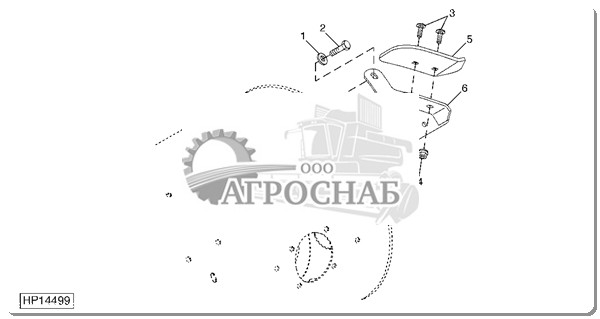

Discharge Flight Kits(Наборы Полета Разряда )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | 24M7296 | Washer | 6 | X | X | 10.500 X 30 X 2.500 mm (A) | |
| 2 | H173619 | Screw | 6 | X | X | (A) | |
| 3 | H160905 | Bolt | 4 | X | X | (B) | |
| 4 | 14M7299 | Flange Nut | 4 | X | X | M12 (B) | |
| 5 | ...... | Flight | 2 | X | X | (B) | |
| 6 | ...... | Support | 2 | X | X | (A) | |
| .. | AH220414 | Kit | 1 | X | X | (C) (SUB FOR AH215540) (INCL A) | |
| .. | AH220415 | Flight Kit | 1 | X | X | (D) (SUB FOR AH215541) (INCL B) | |
| .. | BH84478 | Complete Goods/Ship. Bundle | 1 | X | X | (E) |

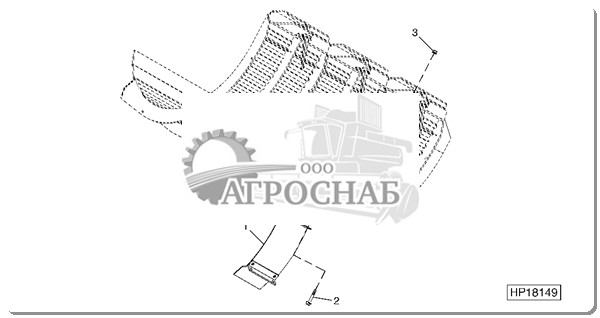

ROUND BAR CONCAVE COVERS(КРУГЛЫЙ БАР ВОГНУТЫЕ КРЫШКИ)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | AH228064 | Cover | AR | X | X | ||
| 2 | 19M7863 | Screw | AR | X | X | M6 X 25 | |
| 3 | 14M7397 | Lock Nut | AR | X | X | M6 |

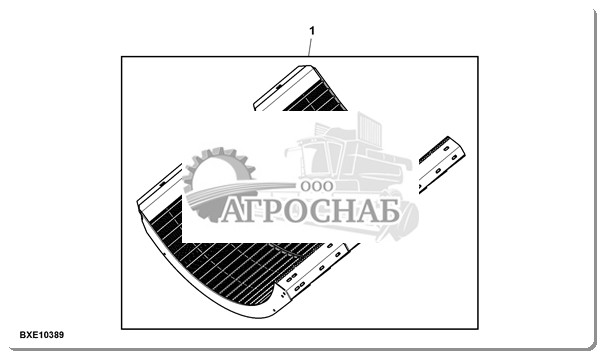

Small Wire Concaves, Extended Wear, Attachment(Небольшой Провод Concaves Длительного Ношения Вложений)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | BXE10389 | Concave Kit | 1 | X | X | SUB FOR BH84285 |

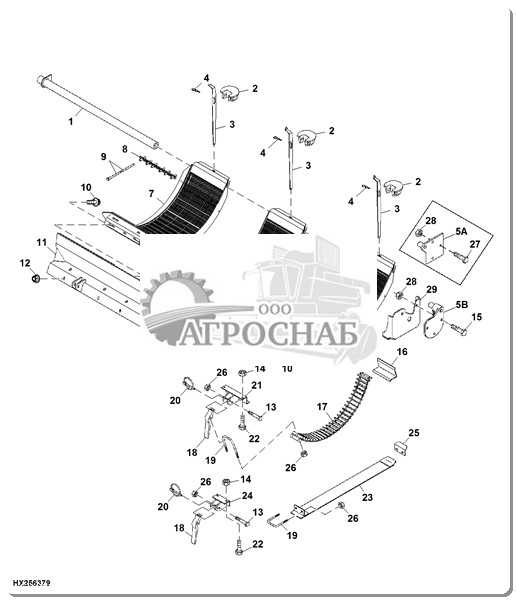

Concaves and Supports(Concaves и поддерживает)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | AH201400 | Bar | 1 | (A) | |||
| AH218464 | Pin Fastener | 1 | (B) | ||||
| 2 | H206716 | Retainer | 3 | X | X | ||
| 3 | H206715 | Handle | 3 | X | X | ||
| 4 | 28316 | Spring Locking Pin | 3 | X | X | ||
| 5A | AH146657 | Plate | 1 | (A) | |||
| 5B | H218201 | Support | 1 | (B) | |||
| 6 | AXE28958 | Concave | 2 | X | X | (C) SUB FOR AH205255 | |
| AXE28961 | Concave | 2 | X | X | (D) SUB FOR AH207851 | ||
| AXE28964 | Concave | 2 | X | X | (E) SUB FOR AH205260 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| AXE28966 | Concave | 2 | X | X | (F) SUB FOR AH209091 | ||
| AXE28957 | Concave | 2 | X | X | (G) SUB FOR AH206456 | ||
| AXE39215 | Concave | 2 | X | X | (H) SUB FOR AH210351 | ||
| 7 | AXE28812 | Concave | 1 | X | X | (I) SUB FOR AH205254 | |
| AXE28960 | Concave | 1 | X | X | (J) SUB FOR AH207850 | ||
| AXE28962 | Concave | 1 | X | X | (E) SUB FOR AH205259 | ||
| AXE28965 | Concave | 1 | X | X | (F) SUB FOR AH209090 | ||
| AXE28955 | Concave | 1 | X | X | (G) SUB FOR AH205261 | ||
| 8 | AH202021 | Bar | AR | X | X | (K) | |
| 9 | H156272 | Nail | 31 | X | X | (C) | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| H158142 | Nail | 13 | X | X | (E) | ||
| 10 | 19M7786 | Screw | 12 | X | X | M10 X 30 | |
| 11 | AXE59657 | Support | 1 | X | X | (SUB FOR AH215091) | |
| 12 | H135891 | Lock Nut | 12 | X | X | ||
| 13 | 19M7800 | Screw | AR | X | X | M8 X 50 | |
| 14 | 14M7397 | Lock Nut | 8 | X | X | M6 | |
| 15 | 19M7791 | Bolt | 1 | X | X | M12 X 40 | |
| 16 | H209559 | Bracket | 2 | X | X | ||
| 17 | AH204423 | Concave | AR | X | X | ||
| 18 | H161342 | Lever | 3 | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 19 | H177984 | U-Bolt | 3 | X | X | ||
| 20 | AR83396 | Quick Lock Pin | 3 | X | X | ||
| 21 | AH167177 | Bracket | 2 | X | X | (G) | |
| 22 | 19M7863 | Screw | 8 | X | X | M6 X 25 | |
| 23 | AH171836 | Plate | 3 | X | X | ||
| 24 | AH171837 | Bracket | 3 | X | X | (C) (E) | |
| 25 | H177647 | Angle | 3 | X | X | ||
| 26 | H137328 | Lock Nut | AR | X | X | ||
| 27 | 19M7789 | Screw | 3 | X | X | M12 X 30 | |
| 28 | 14M7401 | Lock Nut | 3 | X | X | M12 | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 29 | AH222450 | Bracket | 1 | X | X | (B) | |
| .. | BH84308 | Complete Goods/Ship. Bundle | 1 | X | X | (G) | |
| .. | BXE10388 | Complete Goods/Ship. Bundle | 1 | X | X | (C) SUB FOR BH84229 | |
| .. | BXE10387 | Complete Goods/Ship. Bundle | 1 | X | X | (G) SUB FOR BH84226 | |
| .. | BXE10390 | Complete Goods/Ship. Bundle | 1 | X | X | (E) SUB FOR BH84227 | |
| .. | BXE10391 | Complete Goods/Ship. Bundle | 1 | X | X | (F) SUB FOR BH84286 |

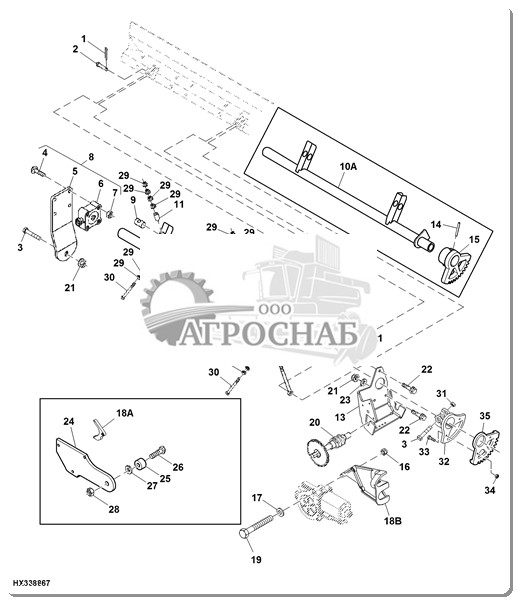

Concave Adjusting Parts(Вогнутая Регулировать Частей)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | 11M7017 | Cotter Pin | 2 | X | X | 3.200 X 32 mm | |
| 2 | 45M7042 | Pin Fastener | 2 | X | X | 12 X 50 mm | |
| 3 | 19M7809 | Screw | 5 | X | X | M10 X 70 | |
| 4 | 19M7317 | Screw | 1 | X | X | M5 X 30 | |
| 5 | H172951 | Support | 1 | X | X | ||
| 6 | AXE58085 | Sensor | 1 | X | X | (C) SUB FOR AH145352 | |
| 7 | 14M7375 | Flange Nut | 4 | X | X | M5 | |
| 8 | AH173316 | Bracket | 1 | X | X | ORDER (4) 19M7317, H172951 , AXE58085 AND (4) 14M7375 | |
| 9 | H156593 | Pin | 2 | X | X | (A) | |
| H218650 | Pin Fastener | 2 | X | X | (B) | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 10A | AH202347 | Structural Tube | 1 | X | X | (A) | |
| 10B | AH218301 | Tube | 1 | X | X | (B) SUB FOR AH204643 | |
| 11 | 28H3430 | Bushing | 4 | X | X | (A) 0.546" X 0.840" X 1-1/2" | |
| H218657 | Spacer | 4 | (B) | ||||
| 12 | H156592 | Eyebolt | 2 | X | X | (A) | |
| H218649 | Eyebolt | 2 | (B) | ||||
| 13 | AH230527 | Bracket | 1 | X | X | SUB FOR H177621 | |
| 14 | AH155278 | Pin | 1 | X | X | USE WITH H152305 | |
| 15 | H152305 | Gear | 1 | X | X | (A) Z = 9 | |
| 16 | 14M7264 | Lock Nut | 3 | X | X | M4 USE WITH AH170587 | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 14M7265 | Lock Nut | 3 | X | X | M5 USE WITH AXE13829 | ||
| 17 | 24M7117 | Washer | 3 | X | X | 4.300 X 9 X 0.800 mm USE WITH AH170587 | |
| 24M7027 | Washer | 3 | X | X | 5.300 X 10 X 1 mm USE WITH AXE13829 | ||
| 18A | H202347 | Spacer | 1 | X | X | (SUB HXE10395) | |
| 18B | HXE10395 | Support | 1 | X | X | ||
| 19 | 19M8842 | Screw | 3 | X | X | M4 X 60 USE WITH AH170587 | |
| 19M7665 | Cap Screw | 3 | X | X | M5 X 65 USE WITH AXE13829 | ||
| 20 | AH224006 | Worm Gear | 1 | X | X | SUB FOR AH171768 | |
| 21 | 14M7296 | Flange Nut | AR | X | X | M10 | |
| 22 | 19M8582 | Screw | 3 | X | X | M4 X 65 | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 23 | 24H1886 | Washer | 1 | X | X | 15/32" X 1-1/8" X 0.180" | |
| 24 | H209140 | Bracket | 1 | X | X | ||
| 25 | H209141 | Bumper | 1 | X | X | ||
| 26 | 19M7867 | Screw | 1 | X | X | M8 X 25 | |
| 27 | 24M7024 | Washer | 1 | X | X | 9 X 28 X 3 mm | |
| 28 | H137328 | Lock Nut | 1 | X | X | ||
| 29 | 14M7299 | Flange Nut | AR | X | X | M12 , USE WITH H156592 | |
| 14M7276 | Nut | AR | X | X | M16 , USE WITH H218649 | ||
| 30 | 19M7590 | Cap Screw | 2 | X | X | M12 X 100 | |
| 31 | 14M7465 | Lock Nut | 1 | X | X | M10 | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 32 | H223939 | Hub | 1 | X | X | (B) | |
| 33 | 19M8290 | Screw | 2 | X | X | M6 X 35 | |
| 34 | 14M7397 | Lock Nut | 2 | X | X | M6 | |
| 35 | H223940 | Gear | 1 | X | X | (B) Z = 9, USE WITH H223939 | |
| .. | AH204933 | Guide Bar | 1 | X | X | (D) |

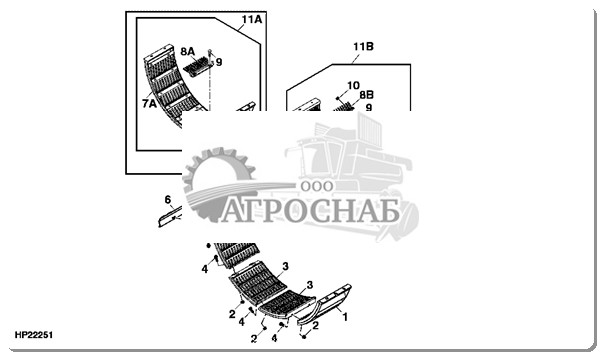

Separator Grate(Сепаратор Решетка)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | H174439 | Grate | 4 | X | X | RH | |
| 2 | H135891 | Lock Nut | AR | X | X | ||
| 3 | H159065 | Grate | 8 | X | X | ||
| 4 | 19M7835 | Screw | AR | X | X | M10 X 35 | |
| 5 | H201117 | Grate | 4 | X | X | LH | |
| 6 | AXE50778 | Cover | AR | X | X | SUB FOR AH170741 | |
| 7A | AH223657 | Grate | 4 | X | X | (SUB AXE16535) | |
| 7B | AXE16535 | Frame | 4 | X | X | ||
| 8A | H203350 | Finger | AR | X | X | (F) | |
| 8B | HXE22522 | Finger | AR | X | X | USE WITH AXE16538, (F) | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 9 | 03M7193 | Bolt | 88 | X | X | M10 X 35 | |
| H229875 | Bolt | 22 | X | X | (F) | ||
| 10 | 14M7296 | Flange Nut | AR | X | X | M10 (F) | |
| 11A | AH203771 | Shoe Kit | 1 | X | X | (A) (SUB AXE16538) | |
| AH223656 | Separator | 4 | X | X | (SUB AXE16538) (F) | ||
| 11B | AXE16538 | Grate | 4 | X | X | ||
| 12 | 19M7807 | Screw | AR | X | X | M10 X 60 | |
| 13 | H123918 | Spacer | AR | X | X | (B) | |
| .. | AH219784 | Separator Kit | 1 | X | X | (C) (INCLUDES (12) H135891, (12) 19M7835 AND (12) 24M7028) | |
| .. | AH228815 | Concave Kit | 1 | X | X | (E) (SUB AXE16538) (INCL F) | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| .. | BXE10645 | Complete Goods/Ship. Bundle | 1 | (D) SUB FOR BH81947 |
Separator Rail Reinforcement Kits(Сепаратор Наборы Железной Дороге Подкрепления )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | H135891 | Lock Nut | 12 | M10 | ||
| 2 | 24M7028 | Washer | 12 | 10.500 X 20 X 2 mm | ||
| 3 | 19M7786 | Screw | 12 | M10 X 30 | ||
| 4 | AH219784 | Separator Kit | 1 | (A) | ||
| 5 | H224267 | Rail | 2 |
Discharge Beater Assembly(Сборка Слива Колотушки )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
|---|---|---|---|---|---|---|---|
| 1 | 19M7786 | Screw | 50 | X | X | M10 X 30 | |
| 2A | H209762 | Strip | 5 | X | X | (ORDER AH234509) | |
| H201915 | Plate | 30 | X | X | (A) | ||
| 2B | H236279 | Strip | 10 | X | X | (SUB FOR H221355) (ORDER AH234509) | |
| 3 | H221379 | Support | 5 | X | X | (SUB FOR H166383) | |
| 4 | 03M7375 | Bolt | 35 | X | X | M10 X 30 | |
| 5 | 14M7296 | Flange Nut | 37 | X | X | M10 | |
| 6 | 19M7810 | Screw | 2 | X | X | M10 X 80 | |
| 7 | H163612 | Hub | 2 | X | X | ||
| 8 | HXE19798 | Hub | 3 | X | X | (SUB FOR AH208495) | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 9 | ...... | Shaft Key | 2 | X | X | CTL 57 mm, MF H64376 | |
| 10 | H161010 | Shaft | 1 | X | X | ||
| 11 | H160801 | Hub | 1 | X | X | ||
| 12 | 24M7091 | Washer | 1 | X | X | 26 X 44 X 4 mm | |
| 13 | 14M7278 | Nut | 1 | X | X | M24 | |
| 14 | AH144822 | Pulley | 1 | X | X | ||
| 15 | 19M7866 | Screw | 6 | X | X | M8 X 20 | |
| 16 | 14M7296 | Flange Nut | 6 | X | X | M10 | |
| 17 | AH133191 | Eccentric Locking Collar | 2 | X | X | ||
| 18 | AH142000 | Hose | 1 | X | X | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| 19 | H171037 | Pressed Flanged Housing | 1 | X | X | ||
| 20 | AH139296 | Ball Bearing | 2 | X | X | ||
| 21 | H135410 | Pressed Flanged Housing | 2 | X | X | ||
| 22 | 03M7192 | Bolt | 6 | X | X | M10 X 30 | |
| 23 | E12379 | Nut | 1 | X | X | ||
| 24 | AH129420 | Pressed Flanged Housing | 1 | X | X | ||
| 25 | JD7845 | Elbow Fitting | 1 | X | X | ||
| 26 | 26M6787 | Shaft Key | 1 | X | X | 10 X 32 mm | |
| 27 | H105578 | Shim | 1 | X | X | ||
| 28 | AH234509 | Strip Kit | 5 | X | X | INCLUDES (2) H236279, SUB FOR AH223919 | |
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS |
| .. | BH84028 | Complete Goods/Ship. Bundle | 1 | X | X | (B) |
Shaker Pan(Шейкер Пан)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | AH219846 | Arm | 1 | X | X | RH, SUB FOR AH170778 | |||
| 2 | 14M7299 | Flange Nut | AR | X | X | M12 | |||
| 3 | H154928 | Bolt | AR | X | X | M12 X 90 | |||
| 4 | AH138230 | Link | 2 | X | X | ||||
| 5 | 19M7820 | Screw | AR | X | X | M12 X 100 | |||
| 6 | M64720 | Rivet | AR | X | X | ||||
| 7 | H203497 | Seal | 2 | - | 706997 | ||||
| H203497 | Seal | 2 | - | 706955 | |||||
| H214184 | Seal | 2 | 706998 | - | |||||
| H214184 | Seal | 2 | 706956 | - | |||||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | 9660 | 9760 | REMARKS | ||
| 8 | H203499 | Seal | 4 | X | X | ||||
| 9A | AXE10046 | Pan | 1 | X | X | SUB FOR AH206069, AH211409, A H216253 OR AH226778, AH229379 | |||
| 9B | AXE17166 | Pan | 1 | X | X | SUB FOR AXE10046 | |||
| 10 | 19M7829 | Screw | AR | X | X | M16 X 130 | |||
| 11 | 19M8486 | Cap Screw | AR | X | X | M16 X 180 | |||
| 12 | 19M7830 | Screw | AR | X | X | M16 X 150 | |||
| 13 | AH219844 | Arm | 1 | X | X | LH, (SUB FOR AH170777) | |||
| 14 | H96690 | Spacer | AR | X | X | ||||
| 15 | 14M7291 | Flange Nut | AR | X | X | M16 | |||
| 16 | H239920 | Seal | 2 | X | X |

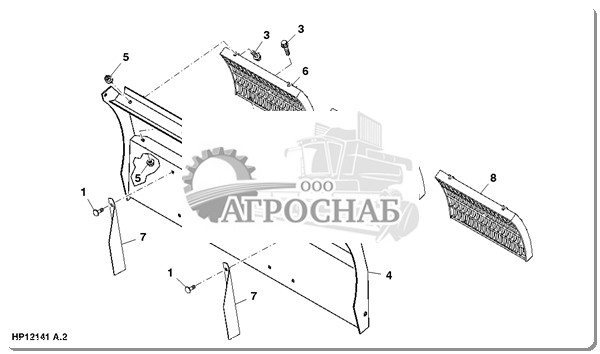

Discharge Grate Assembly(Сборка Решетки Разрядки )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 03M7190 | Bolt | 6 | X X M10 X 20 | ||
| 2 | 14M7296 | Flange Nut | 6 | X X M10 | ||
| 3 | 19M7786 | Screw | 12 | X X M10 X 30 | ||
| 4 | AXE19366 | Grate | 1 | X X SUB FOR AH213353 | ||
| 5 | H135891 | Lock Nut | 12 | X X | ||
| 6 | H164785 | Finger | 3 | X X | ||
| 7 | H214321 | Vane | 2 | X X (SUB FOR H205283) | ||
| 8 | H202562 | Finger | 1 | X X |
Feed Accelerator Tool(Подача Инструмента Акселератора )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 14M7296 | Flange Nut | 8 | M10 | ||
| 2 | 19M8292 | Screw | 8 | M10 X 50 | ||
| 3 | 28H2551 | Spacer | 8 | 0.423" X 0.675" X 1-1/8" | ||
| 4 | AXE15321 | Special Service Tool | 1 | |||
| 5 | 19M7807 | Screw | 8 | M10 X 60 | ||
| 6 | KXE10218 | Special Service Tool | 1 | |||
| 7 | 19M7801 | Screw | 6 | (A) M8 X 60 | ||
| 19M7809 | Screw | 6 | (B) M10 X 70 | |||
| 8 | BXE10562 | Attachment/Bundle Catalog | 1 | SUB FOR AXE15321 |
Concave, Mini Round Bar(Вогнутая Круглый Мини-Бар)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AXE37790 | Concave | 1 | (A) SUB FOR AXE27319 | ||
| AXE37789 | Concave | 1 | (B) SUB FOR AXE27320 |
Feed Accelerator and Rear Discharge Beater Wings, Attachment(Кормить акселератор и задний выброс Колотушки крепления Крыльев )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | BXE10324 | Complete Goods/Ship. Bundle | 1 | NLA, SUB FOR KXE10205 | ||
| 2 | HXE29456 | Hub | 3 | |||
| 3 | HXE38786 | Hub | 2 | |||
| 4 | HXE45298 | Support | 4 | |||
| 5 | HXE45299 | Support | 4 | |||
| 6 | HXE45530 | Wear Plate | 48 | |||
| 7 | 14M7299 | Flange Nut | 48 | M12 | ||
| 8 | 19M7786 | Screw | 40 | M10 X 30 | ||
| 9 | 03M7414 | Bolt | 48 | M12 X 35 |
Attachment, Separator Grate, Rice(Вложение Сепаратор Решетка Рис)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | BH84519 | Grate | 1 |

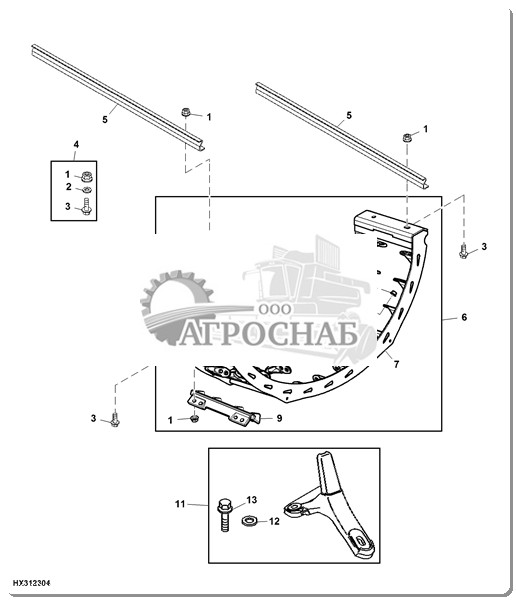

Separator Grate, Rice(Сепаратор Решетка Рис)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | H135891 | Lock Nut | AR | |||
| 2 | 24M7028 | Washer | 12 | 10.500 X 20 X 2 mm | ||
| 3 | 19M7786 | Screw | 16 | M10 X 30 | ||
| 4 | AH219784 | Separator Kit | 1 | Includes Template And Instructions | ||
| 5 | H224267 | Rail | 2 | |||
| 6 | AXE44522 | Separator | 4 | |||
| 7 | AXE38026 | Separator | 4 | |||
| 8 | HXE22522 | Finger | 44 | |||
| 9 | HXE38180 | Finger | 8 | |||
| 10 | 19M7835 | Screw | AR | M10 X 35 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | AH228817 | Tine | 8 | |||
| 12 | 24M7296 | Washer | 72 | 10.500 X 30 X 2.500 mm | ||
| 13 | H208187 | Screw | 72 |
